NRI-PRV

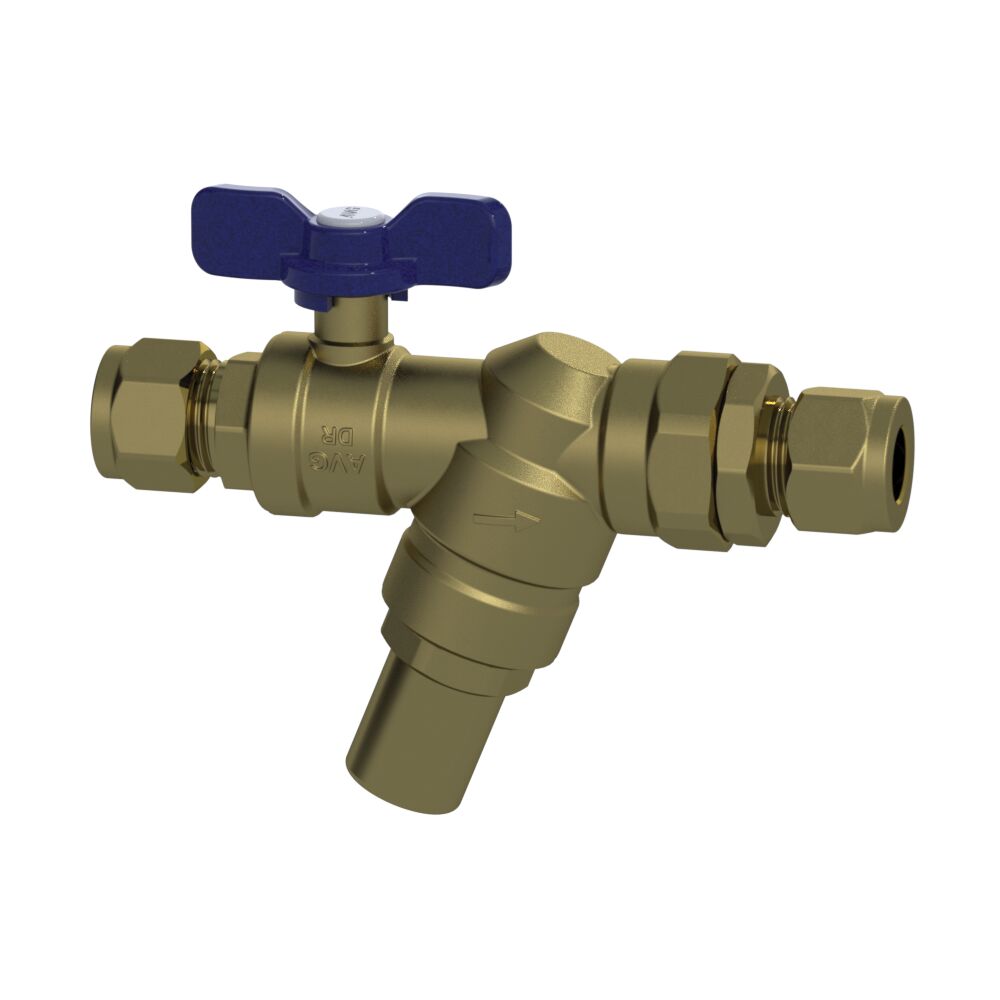

Non Return Isolation and Pressure Reduction Valve, DN15-DN20
A non-return isolation pressure reduction valve can be a valuable addition to many piping systems. If the incoming water pressure is too high, this can put unnecessary strain on water heaters, pipe work, plumbing joints, taps and tap washers. It can increase the risk of burst hoses on washing machines, water leaks and possibly magnify any existing water hammer problems. Tha AVG non return isolation pressure reduction valves (NRI-PRV) are factory set at 500 kPa. The downstream pressure is adjustable from 250 to 650 kPa. For pressure monitoring, there is a gauge port on the body of the valve so that a gauge can be fitted to monitor the upstream and downstream pressure. Sizes DN15-DN20.
Features
- Internal strainer
- Adjustable range 250 – 650 kPa
- High flow rate
- Valve insulation included
- Factory set at 500 Kpa
- Non return isolating valve incorporated
- Compact design
- DZR brass valve body
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific NRI-PRV
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| Watermark |
