740-AUS

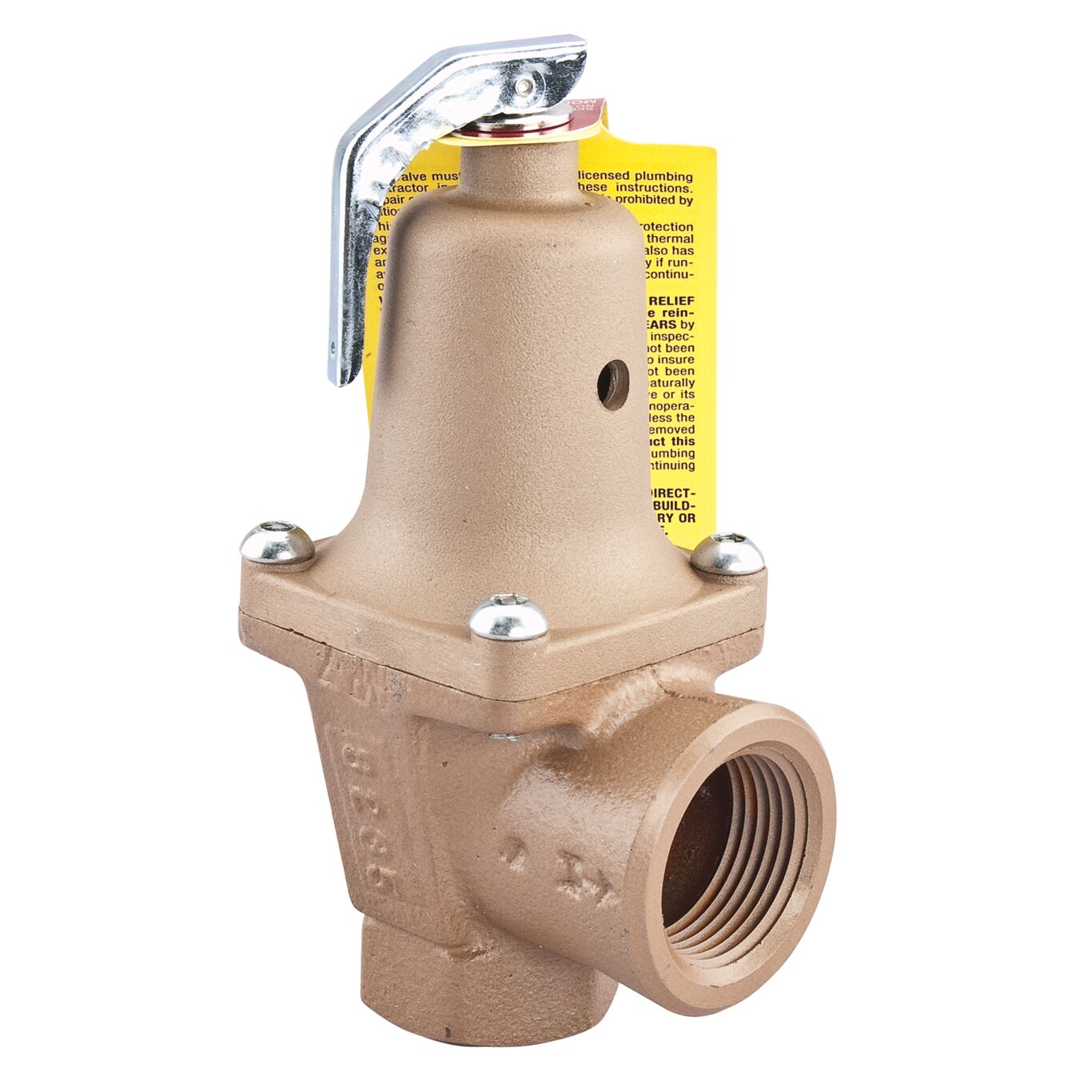

Water Pressure Relief Valves, DN20-DN50
Series 740-AUS boiler pressure relief valves are used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water space heating boiler equipment. They have an iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc-to-metal seating, stainless steel spring, and test lever. Series 740-AUS offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief and shall not be used as an operating control. Pressure Range: 30 to 75psi (2 to 5 bar) with corresponding high ratings from 925,000 to 10,700,000 BTU/hr.
Features
- Water seal of high temperature resisting material isolates spring working parts from water during relief
- Non-mechanical seat-to-disc alignment will not stick or freeze
- Seat located above drain; water cannot be trapped and sediment cannot foul seat
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 740-AUS
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| Watermark |
