DRVN-AUS

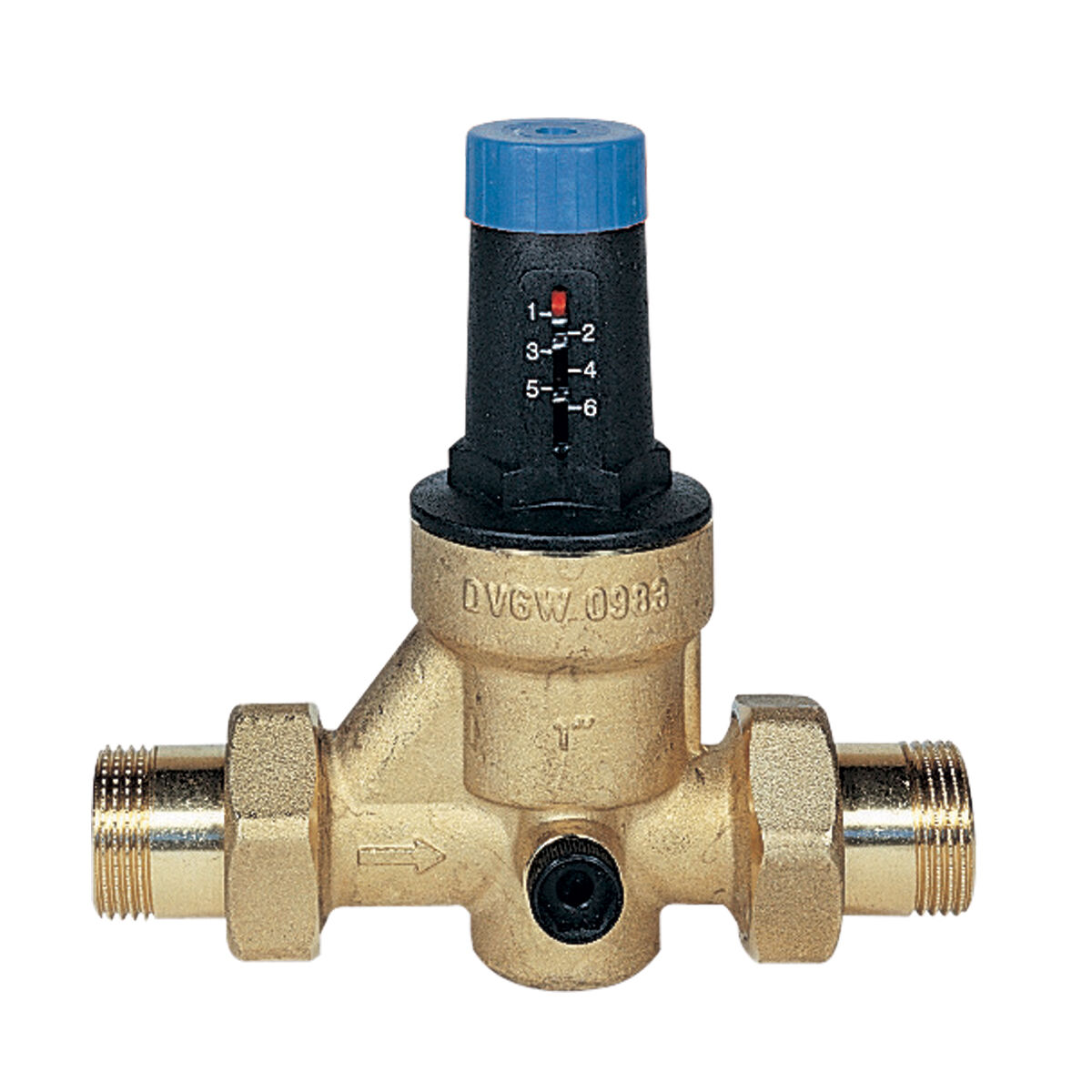

[SPECIAL ORDER] Diaphragm Pressure Reducing Valve, Reduced Pressure Range: 150-600kPa, DN15-DN50
Series DRVN-AUS pressure reducing valves are devices capable of reducing the pressure of the fluid downstream to a desired level and keeping it constant even in the presence of major variations in the flow rate and/or pressure upstream, by modifying its pressure drops. Series DRVN is a patented diaphragm pressure reducing valve with compensated seat, outlet pressure adjustable with a knob and external graduated scale for easy reading of set pressure. Complete with unions. Body of CW617N sand-blasted stamped brass. Stainless steel filter cartridge. Pressure gauge connection on both sides: G1/4”. Maximum inlet pressure: 25 bar. Adjustable downstream pressure: 1,5 and 6 bar. Max. operating temperature: 30°C. Can be used for water, air and neutral gases.
Features
- Body of CW617N sand-blasted stamped brass
- Stainless steel filter cartridge
- Maximum operating temperature is 30°C
- Complete with unions
- Adjustable downstream pressure: 1,5 and 6 bar
- Maximum inlet pressure is 25 bar
- Can be used for water, air and neutral gases
- Pressure gauge connection on both sides: G1/4”
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific DRVN-AUS
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| Watermark |
