TMV
Thermostatic Mixing Valve with Disinfection Function - Thermal Flush, DN15-DN20

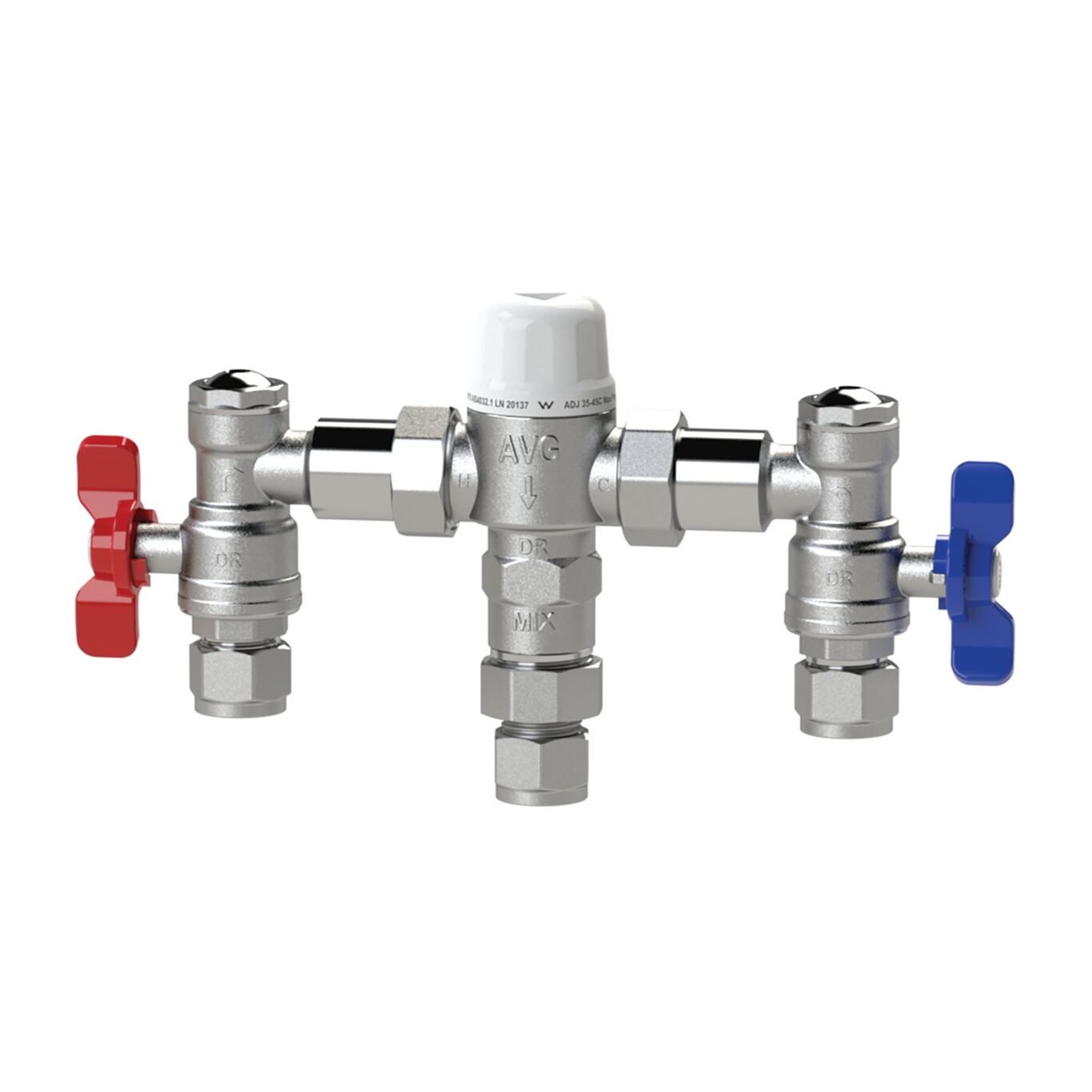

The TMV thermostatic mixing valve is suitable for a wide range of applications. The valve provides high stability of mixed water temperature even under changing inlet conditions. Ensures rapid shut down of mixed outlet flow in the event of hot, or cold water supply isolation. Supplies complete right angle isolating ball valves on the cold and hot inlets, that contain non return valves, strainers and pressure/temperature test ports. Designed to comply with Australian Standard AS4032.1 for Thermostatic Mixing Valves-Materials, Design and Performance Requirements and the NSW Health Department requirements. Temperature adjustment range is 35°to 45°Celsius. Flow rates are minimum 4 litres/minute to ensure stable outlet conditions. Maximum inlet pressure ratio for stable operation (Hot: Cold or Cold: Hot) 10:1 (either supply).
Features
- Meets the requirements of AS4032.1 Thermostatic Mixing Valves
- Disinfection Function “Thermal Flush”
- Provides high stability of mixed water temperature even under changing inlet condition
- Ensures rapid shut down of mixed outlet flow in the event of hot, or cold water supply isolation
- Easily serviced on site
- Suitable for installation into AS3500 compliant systems with hot water temperature as low as 60°C
- The adjustment mechanism can be locked to prevent tampering
- NSW health dept. approved
