Series W-100XFG Brumby
ACV: Fire System Tank Fill Valve

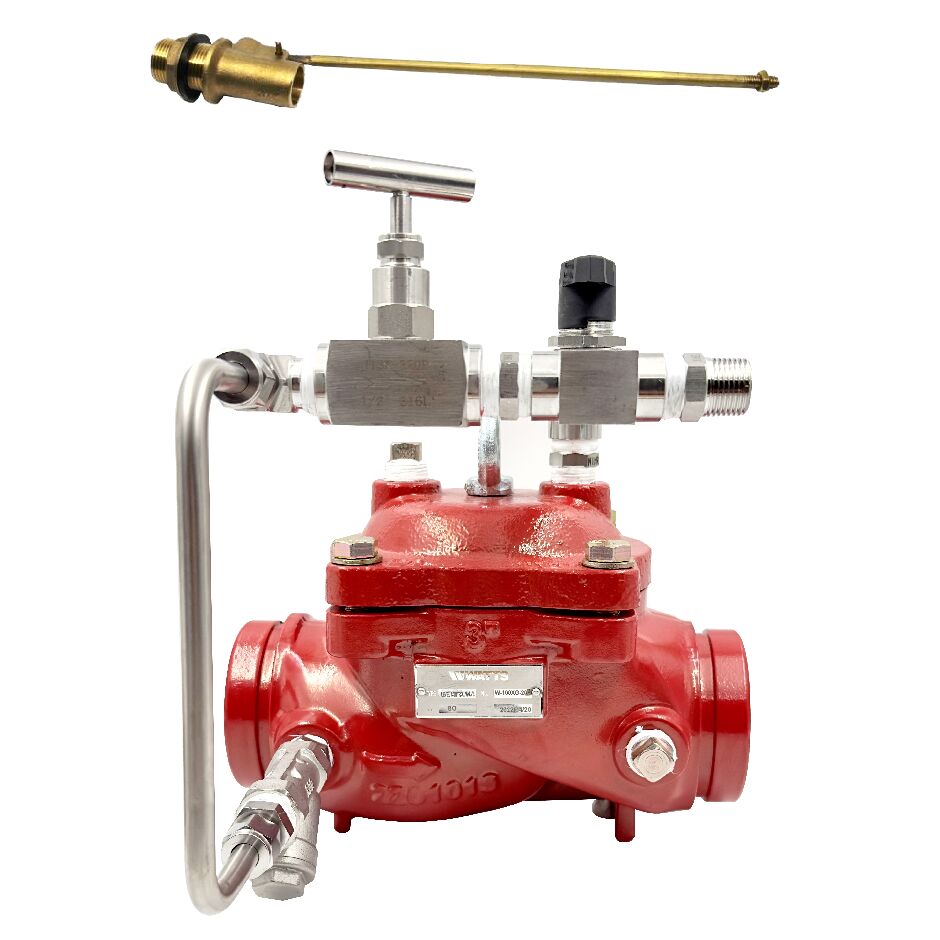

The Watts W-100XF/G (Brumby) Tank Fill Valve consists of the of the hydraulic control valve and adjustable floating ball valve. This hydraulically controlled, diaphragm actuated control valve regulates tank filling to maintain constant water level, for applications such as water tanks or reservoirs in industrial enterprises and residential buildings.
Features
- Compact structure, reliable sealing
- Simple structure, convenient inline maintenance
- Controls the main valve opening and closing through floating ball valve, ensuring water level inside the water tank keeps given height
- The main valve opening or closing speed can be adjusted by the needle valve
- Provided with a 15mm brass float valve and a 100mm plastic ball float
| Series Specifications | |
|---|---|
| Application | Automatic Control Valve |
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Series W-100XFG Brumby
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or contact us. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| Watermark |
