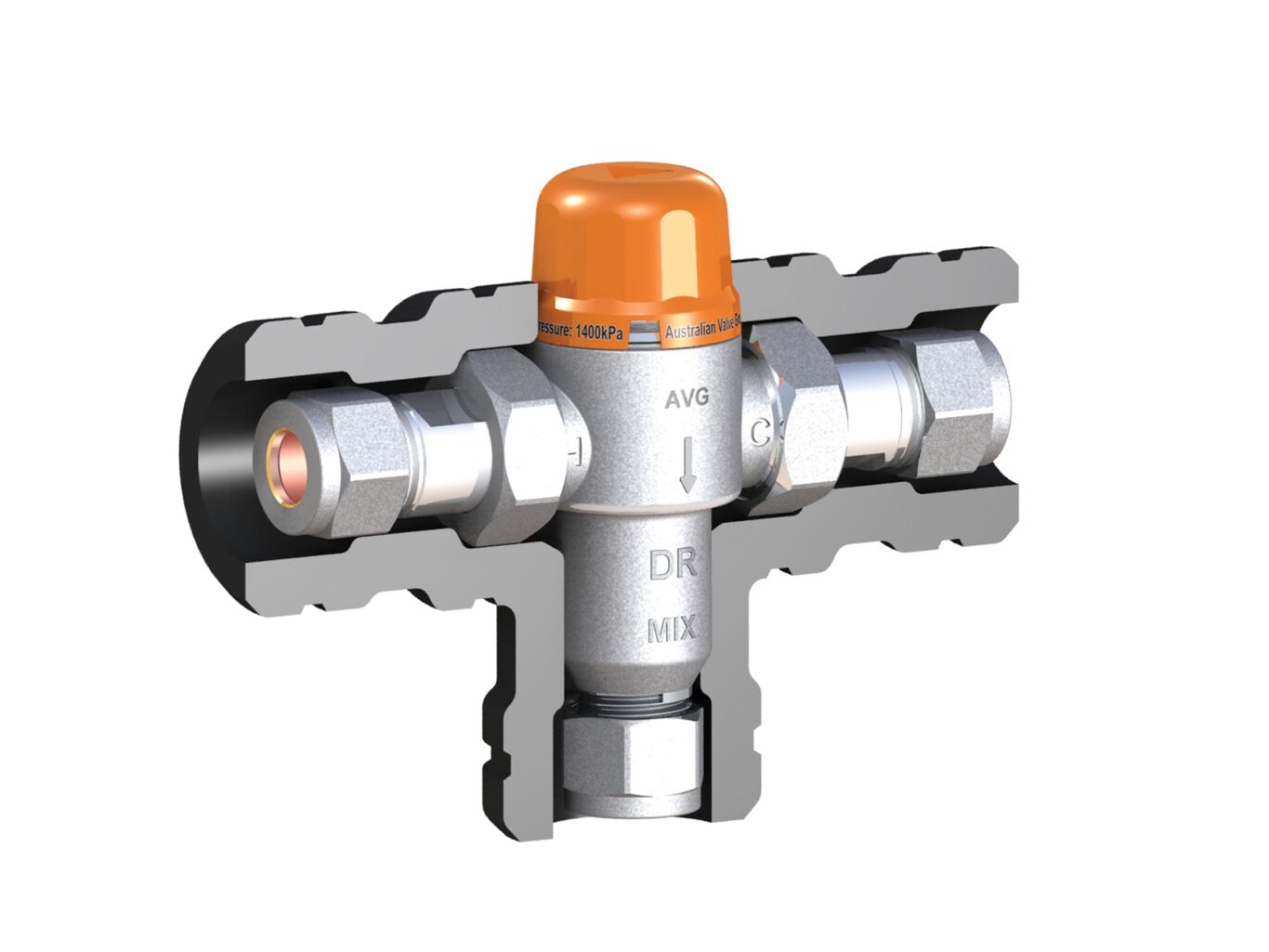

TVA-HP
High Performance Tempering Valve Assemblies (orange cap) for Solar and Continuous Flow Hot Water, DN15-DN20
Suitable for solar and continuous flow hot water systems. The TVA-HP high performance tempering valves are used in hot water supply systems to mix hot and cold water to a controlled outlet temperature, reducing the risk of exposure to excessively hot water. Higher hot water supply temperature rating so as to be suitable for solar hot water applications. Flow rate 4 litres per minute. Will supply 50°C mix with 55°C hot supply. WaterMark Certification – License No. 20137. Sizes DN15 and DN20. Models TVA15CHP-i (DN15) and TVA20CHP-i (DN20).
Features
- Advanced polymers for greater resistance to calcium deposits
- Maximum hot water supply temperature 99°C
- Cast DR brass body
- Have been upgraded to include high-temperature components
- Fast response to pressure fluctuations
- More accurate control: ± 3°C from set temperature (to AS4032.2)
- Integral 60 mesh stainless steel line strainers
- Integral non return valves
